Quick Overview

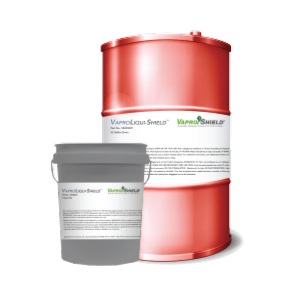

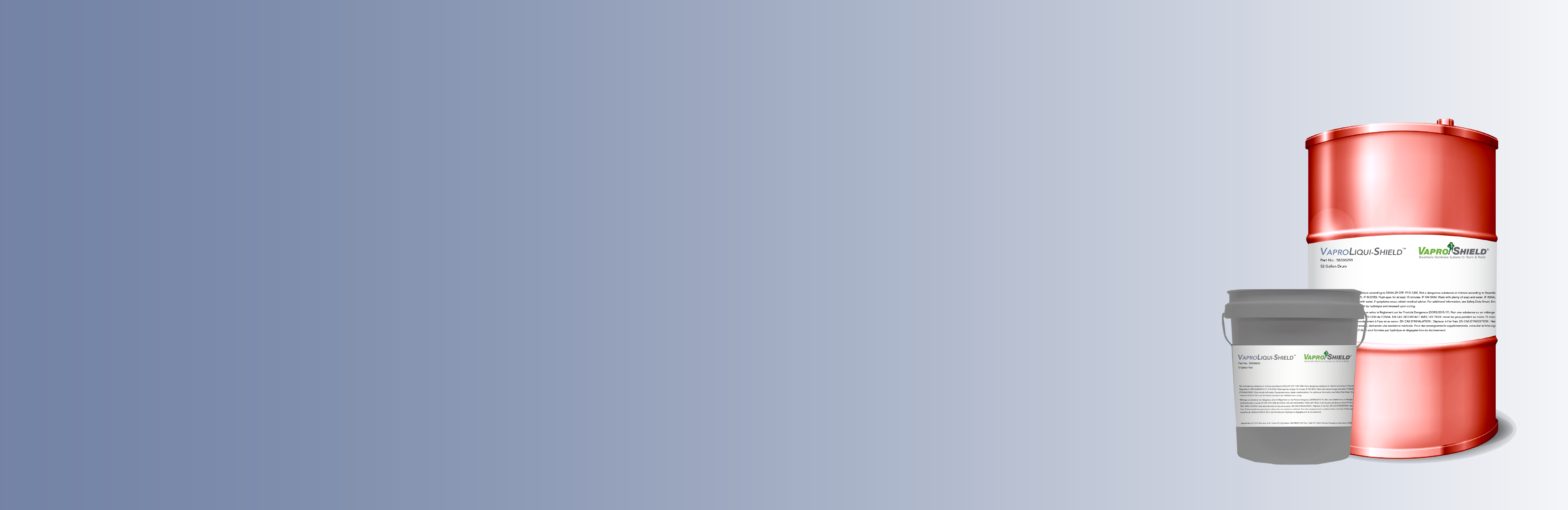

VaproLiqui-Shield is a sprayable/rollable STPE that is solvent and isocyanate free. It is installed above grade on the outside of the wall sheathing and behind rain screen wall cladding assemblies.
VaproLiqui-Flash is a high performance fluid-applied vapor permeable water resistive barrier/air barrier that protects the building envelope by allowing vapor to pass through (breathable) but not air or liquid water
- Forms a seamless, monolithic air and water resistive barrier
- 12 month UV and weather exposure before permanent cladding is installed
- Suited for open joint cladding requiring advanced UV protection
- Solvent and isocyanate-free formulation
- Sprayable and rollable application
- Bonds to common building substrates
- Drying capacity of 21 perms
- Application thickness 20 wet mils
- 20 year material warranty

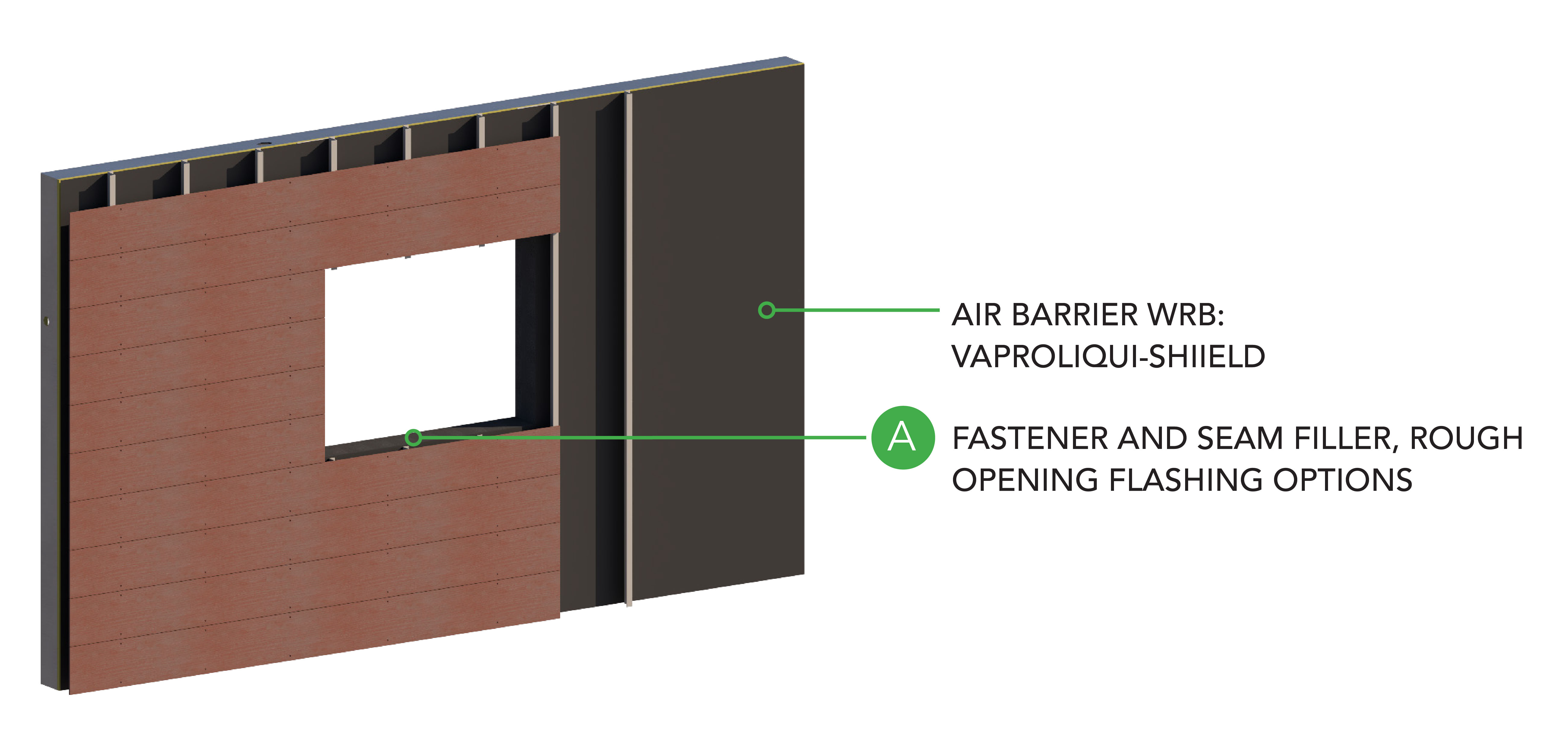

Complete Vapor Permeable Air Barrier WRB System
 |
 |
Rough Opening, Fastener, Seam Filler Options |
 |

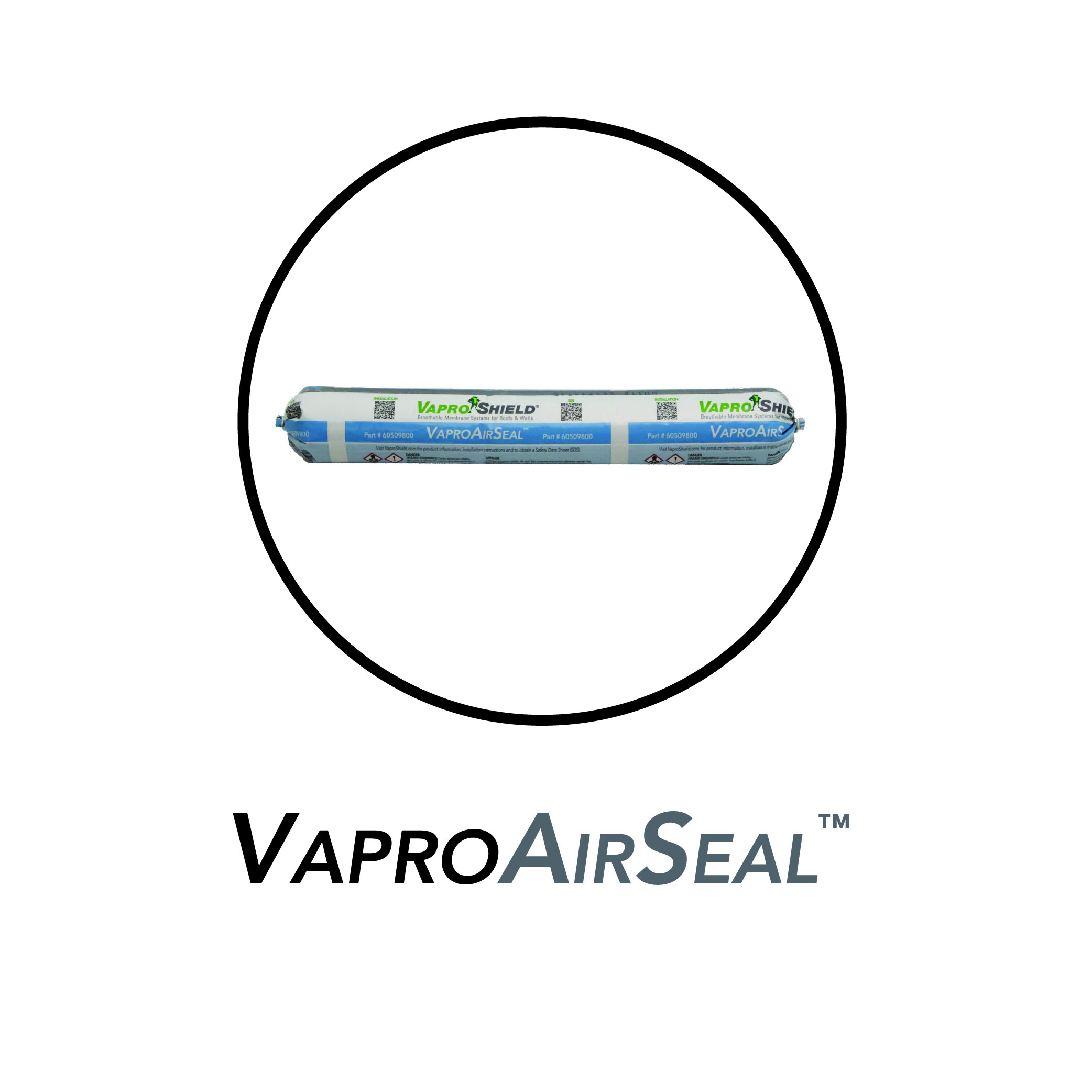

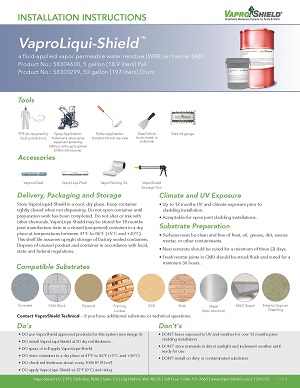

Seam and fastener filler less than 1/4": VaproAirSeal Note: Seams larger than 1/4" require additional detailing. Refer to installation instructions |
|
 |

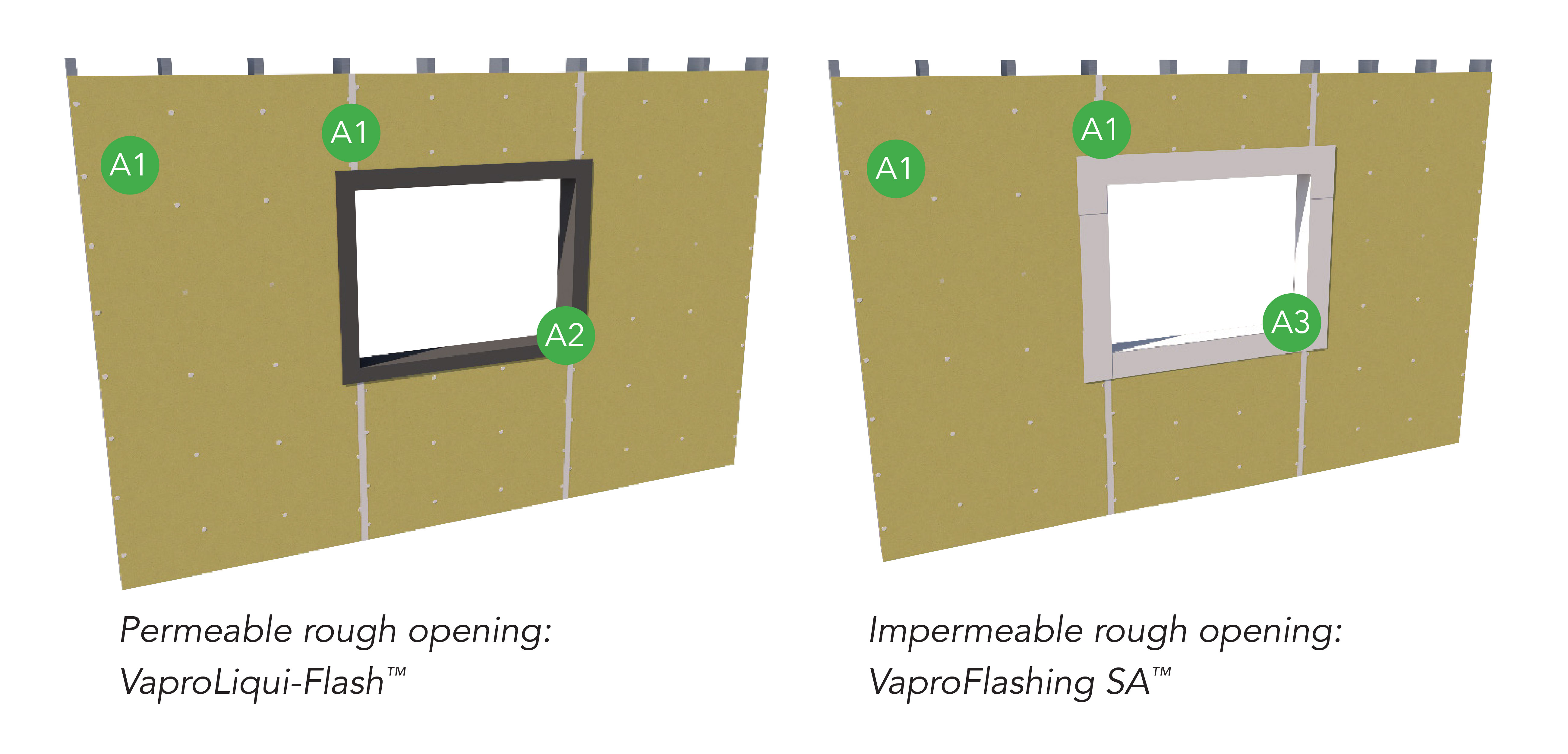

Permeable rough opening: VaproLiqui-Flash | |
 |

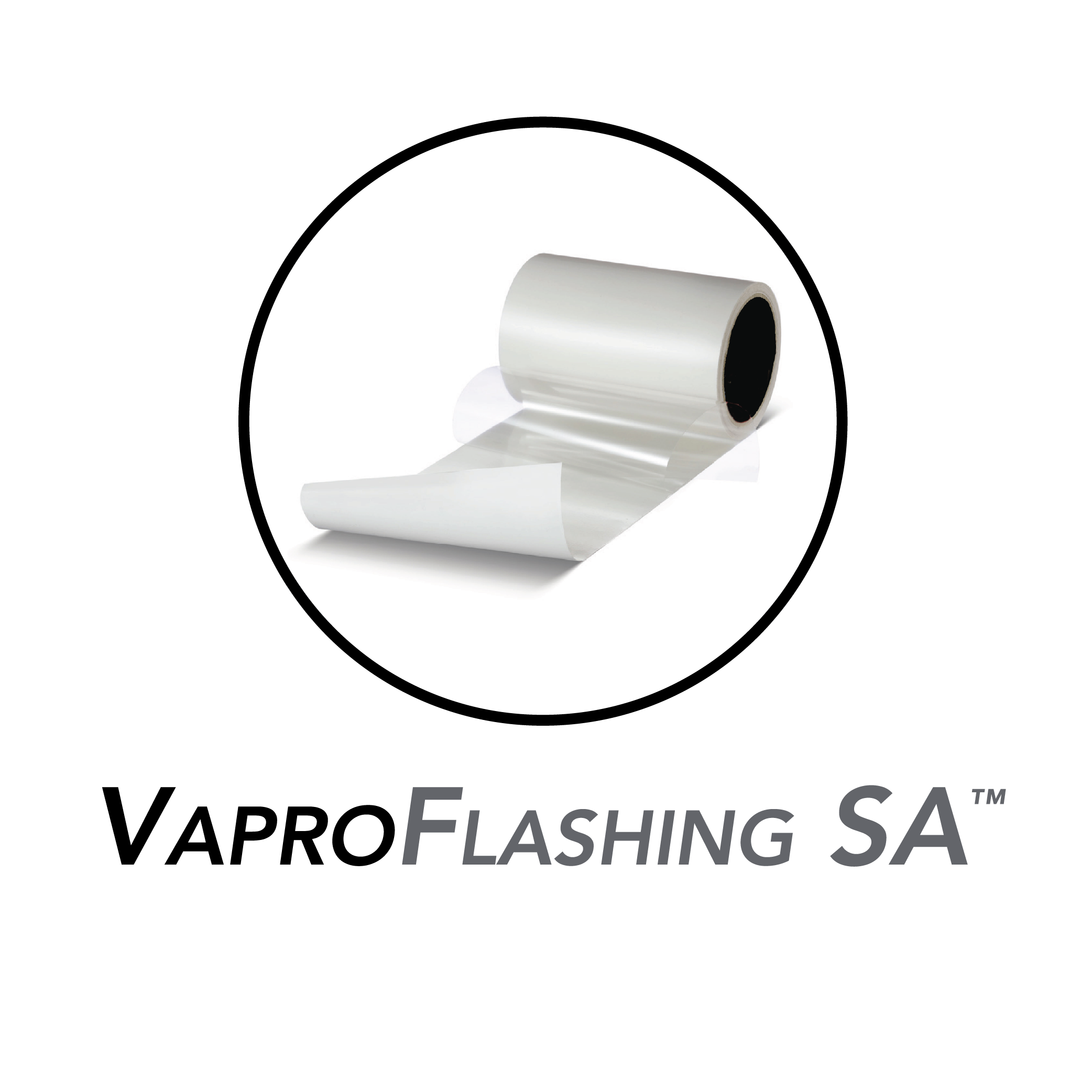

Impermeable rough opening: VaproFlashing SA |
Compatible Substrates
VaproLiqui-Shield can be applied and bonds to most common building materials without priming
|
|
Coverage
| Substrate Type | Coverage Rate |
| Smooth Substrates (sheathing, metal etc.) | 60 − 75 ft²/gal (5.6 – 7.0 m²/3.8 liters) |
| Porous Substrates (CMU, concrete etc.) | 40 − 60 ft²/gal (3.7 - 5.6 m²/3.8 liters) |
