Quick Overview

Rainscreen SA Matrix Penny 032521 webPanelShield SA is optimized for use in panelization and modular construction. Its aggressive adhesive is designed to withstand aggressive construction handling and cross-country transport, and can withstand 12 months exposure.

A permeable polyester air barrier WRB membrane designed for use in panelization/modular and light commercial construction

  • Creates a water resistive air barrier when applied outside of the wall sheathing
  • Cost effective permeable polyester air barrier WRB system
  • DOES NOT REQUIRE PRIMER
  • 12 months UV and weather exposure, ideal for long-term projects
  • Tough and durable, withstands aggressive construction handling
  • Tenacious adhesion to substrate withstands cross-country transport
  • Aggressive adhesive firmly grips to OSB and other common substrates
  • Superb drying capacity, 26 perms
  • All weather installation - including below freezing 20°F (-6°C)
  • Used for transitions, rough openings, fenestrations, and full-wall applications
  • Air Barrier, passes ASTM E2178 and E2357
  • Fire Rated, Class A to ASTM E84
  • 20 year warranty



Complete Air Barrier/WRB System For Panelization/Modular Construction

RS CompleteBuildingSystem WebDeliverable 01

CanShield RoughOpeningOptions Image 01



CanShield A Image 01

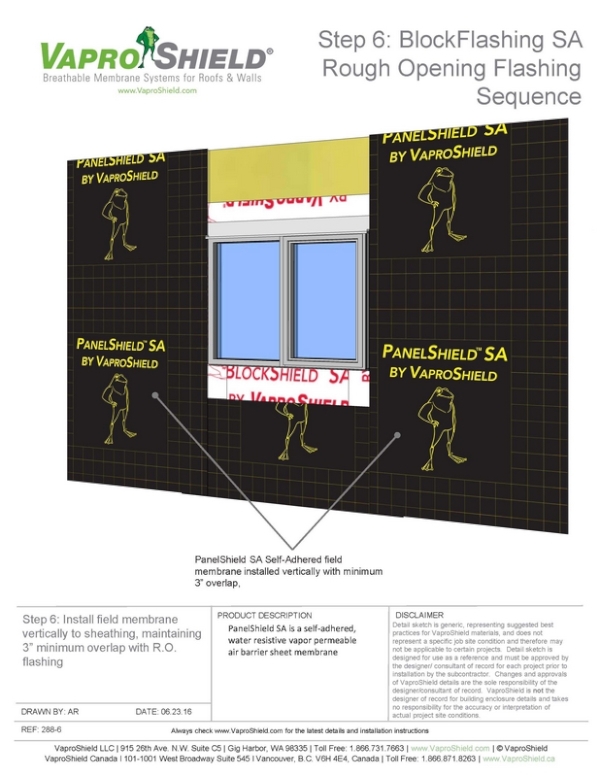

Rough Opening Flashing Options

The following rough opening flashing components can be used:

CanShield A1 Image 01 VaproLiqui-Flash - is a liquid applied waterproof flashing material for window and door interfaces.
CanShield A2 Image 01 VaproBlock Flashing - is a non-permeable tape flashing.
CanShield A3 Image 01 VaproBond - is a 100% silicone sealant

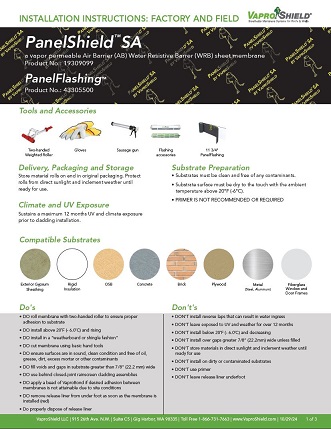

Factory Assembly Overview

4110 359panel gyp 6 4110 359panel gyp PDS panel stack horizontal

Field Assembly Overview

4110 367 102920 Copy web 4110 367 b090417 panel a
4110 368 043018 panel 4110 374 090817 panel
