RevealShield SA Self-Adhered

QUICK OVERVIEW

Black, UV Stable Water Resistive Vapor Permeable Self-Adhered Air Barrier Membrane for Open Joint Rain Screen Cladding Systems

  • Fully Self-Adhered (Not Spot Applied)
  • No Special Installation Equipment Required
  • Zero VOC's
  • No Primers Required
  • Exceptional UV Stability
  • Highly Vapor Permeable
  • Resists Bulk Water Infiltration
  • Installs in Temperatures As Low As 20°F (-6°C)
  • 12 months (maximum) UV & Climate Exposure Prior to Cladding Installation
  • Class A Fire Rated
  • Flamespread Index 0
  • Passes ASTM E 2357 and Is ABAA Approved As An Air Barrier
  • 20 Year Warranty



Fast, Easy, Efficient Two Component Air Barrier System

RevealShieldSA 3steps

Benefits

Building Envelope Protection

  • Resists bulk water infltration
  • Allows building materials to dry out
  • High drying capacity reduces the risk of damage from moisture infiltration, mold, mildew and rot

Cost Advantage

  • Reduces contractor liability by using fully tested VaproShield system: single source membranes, flashings and sealants
  • Installs in temperatures as low as 20°F (-6°C)
  • No costly delays due to primers

Phase Construction Friendly

  • Applicable for all climates
  • Non-directional horizontal or vertical installation
  • No special installation equipment required
  • Sustains 12 months (maximum) UV & Climate exposure prior to cladding installation.
  • Best practice recommendation is to cover RevealShield SA Self-Adhered with permanent cladding as soon as practical.

Substrate Information

  • The substrate condition is crucial to the adhesion performance of any adhesive membrane.
  • Substrates must be clean and free of any contaminants.
  • Substrate surface must be dry to the touch with the ambient temperature above 20°F.
  • RevealShield SA Self-Adhered can be applied to a wide variety of sheathing substrates:

GlasRoc • DensGlass Gold • Most rigid insulation • Pre-painted steel • Precast concrete • Concrete block • Plywood • Aluminum (painted or mill finish) • Cast-in-place concrete • Galvanized metal • Rigid vinyl • Steel • Anodized Aluminum

Energy Efficiency

  • Easily creates a continuous air barrier system and transitions when used with VaproShield accessories
  • Reduces energy consumption when used with VaproShield's Air Barrier Systems approach

Environmental Sustainability

  • Emits Zero VOC's; eliminating exposure to harmful and volatile chemicals
  • Contributes to LEED points in Indoor Environmental Quality and Energy & Atmosphere
Resources



Testing

VS Testing Thumb 042617



Data Sheet (PDF)

VS PDS Reveal SA 080818b Page 1

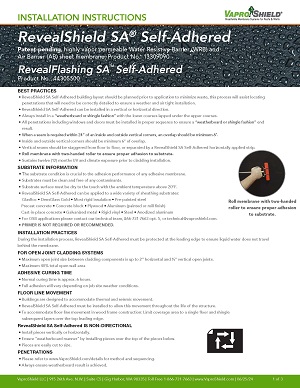

Installation

RevealSA Install Instruct 011017 Page 1

Details

VS 153 VaproSSFlashing ROSequenceReveal 072916 Page 9

Specs (Doc)

Specs (PDF)

2016.09.08 WallShield IT Specification Page 1

SDS (PDF)

wallshield msds Page 1

Submittal Package (PDF)

RevealShield Submittal Package Front 050217

Related Products
VS WebsiteImages RelatedProducts A 030117 VS WebsiteImages RelatedProducts B 030117 VS WebsiteImages RelatedProducts 042517 C VS WebsiteImages RelatedProducts 042517 D
Approvals and Certificates
ABAA evaluated  ABAA Air Barrier Material Evaluated Certificate vaproshield revealshield

Project Profiles using RevealShield SA
